UAV Workflow Technical Characteristics Classification And Technical Impact And UAV Parts CNC Machining

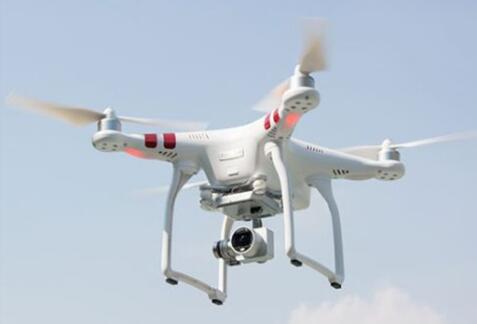

Noble Platinum Chi: Modern UAV precision machining parts. UAV was known as “UAV”, the use of radio remote control equipment and its own program control device, computer control of the body, it is small, low cost, easy to use, while less demanding on the operational environment, and the battlefield Survival is strong, the advantage is obvious. UAVs are of great significance for future air combat, and unmanned aerial vehicles are often more suitable for those who are too dumb, compared with manned aircraft, all countries are working hard to step up the research and development of unmanned aerial vehicles. Man-machine workflow, technical characteristics, classification and technical impact.

UAV workflow:

1, Start interface: Quickly realize the task planning, enter the task monitoring interface, realize the rapid automatic archiving of aerial photography tasks, separate the functions and achieve the specific and stable operation of the software;
2, Pre-flight inspection: To ensure the safety of the mission, before the flight with the flight control software for automatic detection, to ensure that the aircraft’s GPS, compass, air tube and pitch roll good state, to avoid the risk of aerial photography;
3, mission planning: air space in the region, navigation, hybrid three modes of mission planning;
4, flight monitoring: real-time grasp of the aircraft attitude, azimuth, airspeed, location, battery voltage, instant wind speed, mission time and other important state, to facilitate the operator to determine the task of real-time executable, to further ensure the safety of the task;
5, Video stitching: After the aerial mission is completed, the navigation aerial images are used to carry out the image stitching in the research area.
UAV technical features:
1, to achieve high-resolution image acquisition
UAV can achieve high-resolution image acquisition, to make up for satellite remote sensing often can not get the image due to cloud cover the shortcomings at the same time, to solve the traditional satellite remote review cycle is too long, the emergency is not timely and other issues;
2, unmanned combat aircraft
UAV system consists of aircraft platform system, information acquisition system and ground control system. The first generation mainly reconnaissance aircraft for the bulk of some UAVs have been equipped with weapons. Military predictions by UAVs to take on more of a role were originally bombed and ground attack, air-to-air combat, the final piece of pilotage. UAVs equipped with weapons are called unmanned aircraft;
3, launch and recovery
A new generation of unmanned aerial vehicles can be launched and recovered from a variety of platforms, such as ground vehicles, ships, aircraft, suborbital vehicles and satellites for launch and recovery. Ground operators can verify its program via the computer and change the course of the UAV as needed. Some of the more advanced technical equipment such as advanced eavesdropping devices, leaf-penetrating radars, chemical spectrometer-equipped micro spectrometer equipment, etc., will also be installed on the drone.

UAV classification:
Due to the diversity of drones, there are different ways of sorting out for different considerations:
1, according to the flight platform configuration UAV can be divided into:
Fixed-wing UAVs, Rotorcraft UAVs, Unmanned Aerial Vehicles, Umbrella Wing UAVs, Flapping-Wing UAVs;
2, classified by purpose UAV can be divided into:
Military UAVs and civilian UAVs. Military UAV can be divided into reconnaissance unmanned aerial vehicles, bait unmanned aerial vehicles, electronic warfare unmanned aerial vehicles, communications relay unmanned aerial vehicles, unmanned aerial vehicles and target aircraft; civilian UAV can be divided into no inspection / surveillance Machine, agricultural drone, meteorological drone, exploration drone and mapping UAV.
3, according to the standard classification (civil aviation regulations) UAV can be divided into:
Micro UAVs, Light UAVs, Small UAVs and Large UAVs. Micro UAV refers to the empty aircraft mass less than or equal to 7kg, light UAV mass greater than 7kg, but less than equal to 116kg of UAV, and full Ma Liping flight, the calibration airspeed less than 100km / h (55nmile / h) The ceiling is less than 3000m. Small UAV, refers to the quality of empty aircraft less than or equal to 5700kg UAV, except mini and light UAVs. Large unmanned aerial vehicles, refers to the empty aircraft mass greater than 5700kg UAV.
4, classified by activity radius UAV can be divided into:
UTR, UAV short range, UAV short range, UAV and long range drone. UAV within the ultra-short-range motion within 15km, short-range UAV activity radius of 15 ~ 50km, short-range UAV activity radius of 50 ~ 200km, mid-range UAV activity in the 200 ~ 800km Between the long-range UAV activity radius greater than 800km.
5, according to the task of highly classified, UAV can be divided into:
UAVs, UAVs, UAVs, UAVs and UAVs. UAV mission altitude is generally between 0 ~ loom, low altitude UAV mission height is generally between 100 ~ 1000m, the height of the UAV mission is generally between 1000 ~ 7000m, altitude UAV mission height is generally Between 7000 ~ 18000m, the altitude of the UAV mission is greater than 18000m.
UAV technical impact
In this era of devouring the world of technology, drones are percolating into the everyday lives of people, in a crowded metropolis, and at the other end of the country. In rural areas, from the moment UAVs fly into farmland, it means that the mode of agricultural production will change again. Because UAVs are providing a modern, efficient and low-cost way of plant protection for agriculture, helping farmers to gradually improve their agricultural practices. In traditional agricultural production, peasants’ fertilization, pesticide spraying, and prevention of pests and diseases are all based on experience. During the course of their work, they are required to pay close attention to each piece of land and crops. This extensive mode of operation, strength, low efficiency, and UAV will be a heavy manual labor, high cost, low efficiency to the liberation of productive forces, low cost and high efficiency an important means of change, UAV technology The deepening and use of these technologies will make existing farmland farming more efficient, resource-saving and environment-friendly.
In cities that are experiencing rapid changes, in addition to providing logistics solutions, UAS can also provide a wide range of basic geographic information and law enforcement forensics for urban planning, construction and management, such as urban road and bridge construction, traffic patrol, security monitoring , Urban law enforcement and more. The use of UAVs has greatly enhanced our national strength and quality of life.
The above is the UAV for you to introduce the classification, technical characteristics, workflow, technical impact. Wherever an airborne solution is needed, there will be a drones. UAV will be used in a broader area.

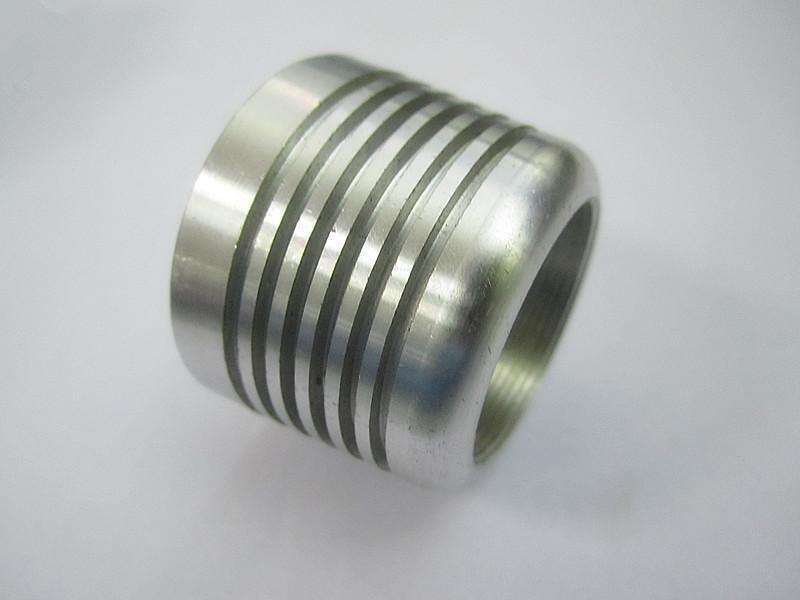

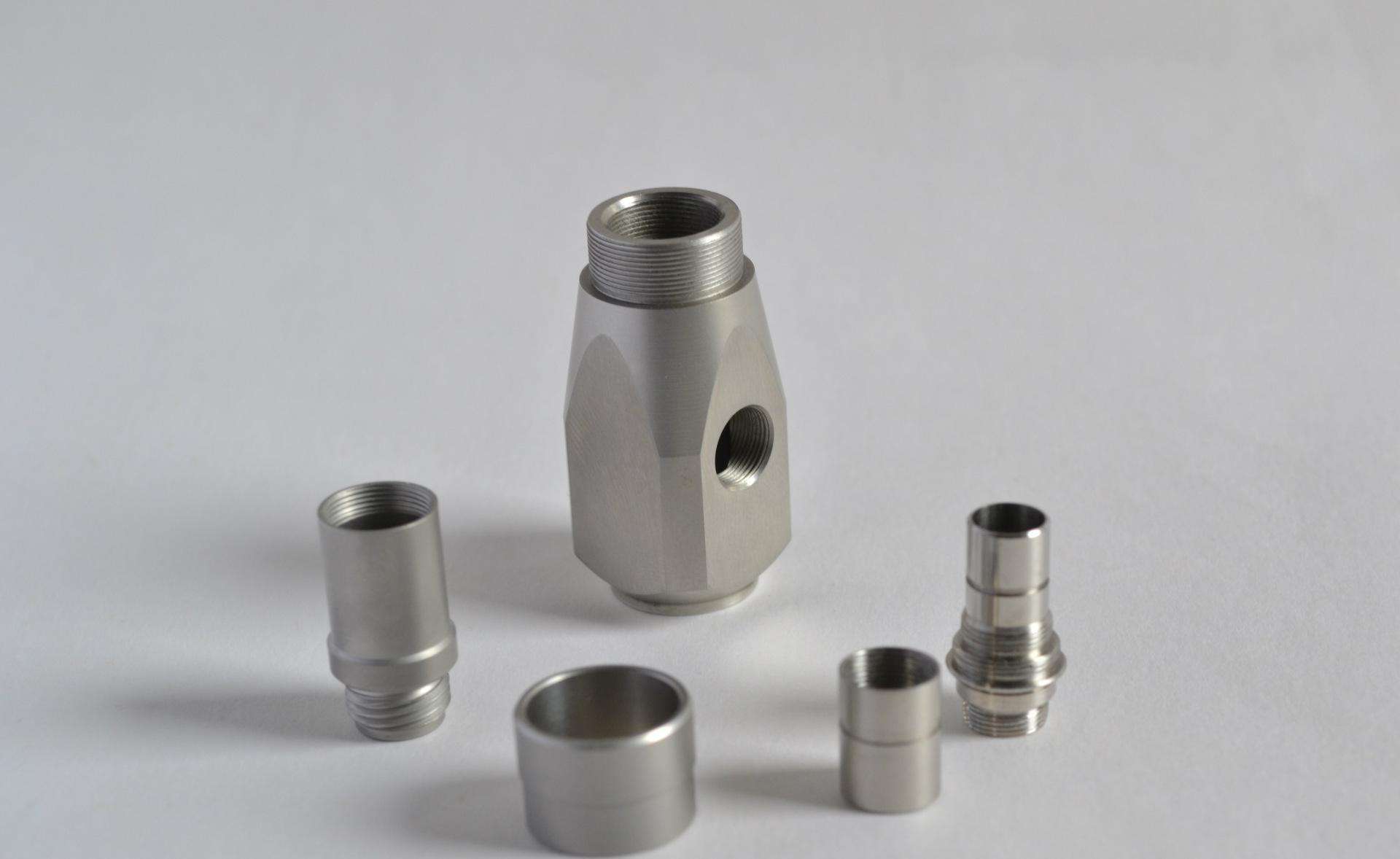

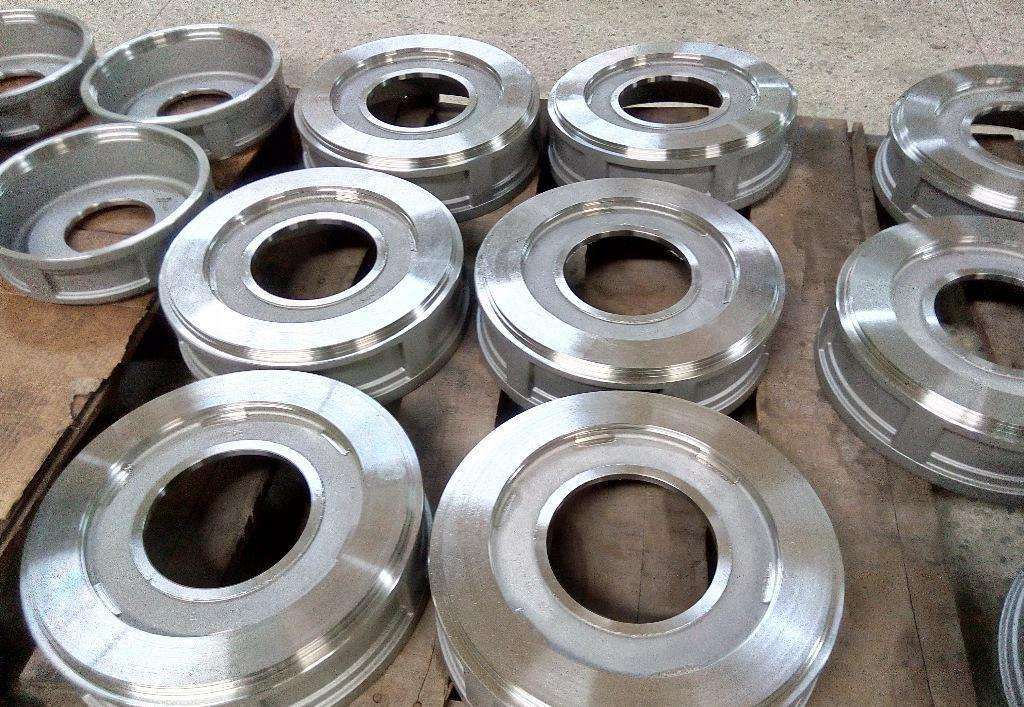

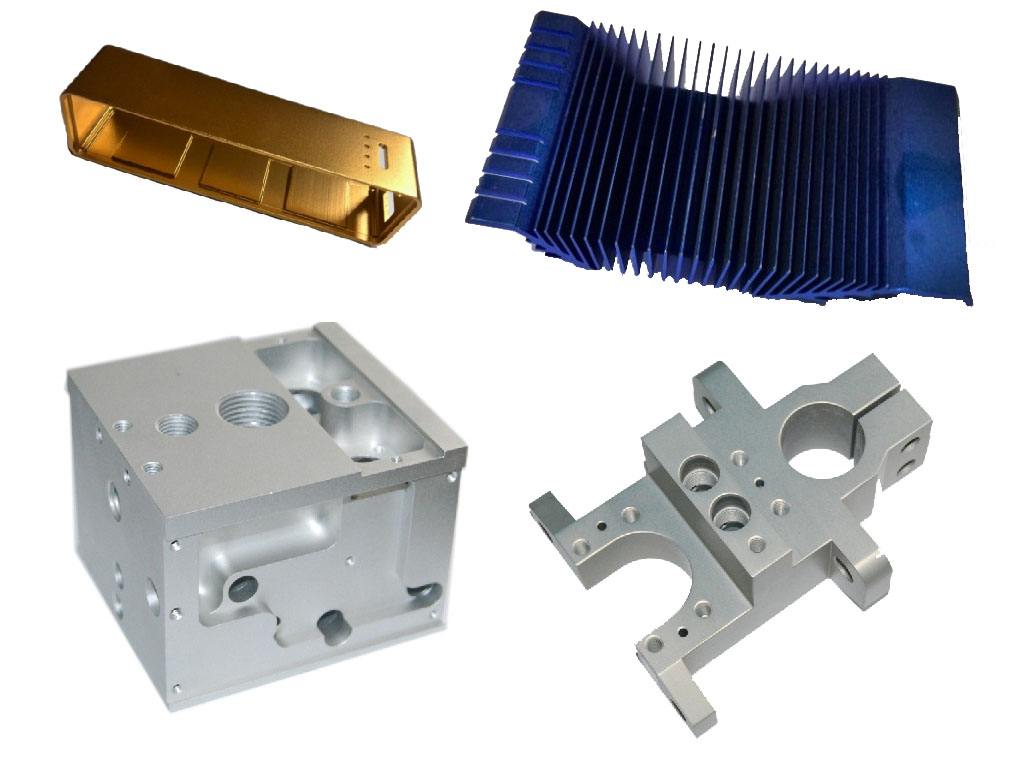

Shenzhen Precision Machining Co., Ltd. Novo Platinum Chi, specializing in hardware CNC machining, UAV parts processing, metal parts processing, hardware CNC machining, aluminum machining, metal machining.
